    LWR-1000-J Laser Welding AI-Powered Control System

    Real-time control in laser welding using advanced AI algorithms

    The LWR-1000-J laser welding AI-powered control system gives you complete control over your laser welding process. It is a high-efficiency, stable real-time inference control platform specifically developed for closed-loop laser welding. This laser welding control system delivers a reliable solution for weld quality monitoring and optimization by integrating image acquisition, spectral analysis, and real-time inference algorithms.

    The laser welding control system meets the high-throughput, low-latency demands of laser welding and additive manufacturing processes with its powerful AI computing capabilities and low-latency data processing, driving the technology toward intelligent automation.

    Request a Quote
    Parameters
    Performance
    Video inference time < 1ms (single frame 1280x384 pixels, 12-bit)
    Signal inference time < 0.1ms(gigabit)
    Built-in model CNN，LSTM、DNN etc.
    Processors 3 × Nvidia Jetson AGX ORIN
    CPU 12-core Cortex A78 ARM 64-bit CPU, 2.2 GHz
    GPU 2048-core NVIDIA Ampere™ GPU, 64 Tensor Cores2, 1.3 GHz
    DL accelerator 2× NVDLAv2，1.6GHz
    RAM 64GB LPDDR5，204.8GB/s
    Flash 64GB eMMC
    Input Interface
    PCIE 1 × PCIE4.0 ×16 /×8
    Camera interface 4 × Micro BNC/CXP-3/CXP-6/CXP-12 support3/6/12 Gbps
    Output Interface
    EtherCAT 2 ×1.0GB wired network port, support EtherCAT as the master, can access slave devices
    Other Interfaces
    USB 2 × USB3.2 1 × Micro USB
    HDMI, GPIO, CAN
    Storage
    M.2 3 × M.2 KEY M for expanded storage
    Power
    Type AC
    Input voltage 220V
    Working Environments
    Operating temperature -25℃to 60℃
    Storage temperature -30℃to 85℃
    Vibration 3Grms@5-500 Hz, 0.5 hr/axis
    Attack 10G / 11 ms
    Physical Properties
    Dimension (Wx D x H) mm 500×500×220
    Weight 11Kg
    Installation Desktop/Wall-mounted
    Features
    • Instantaneous control
      The laser welding control system offers sub-millisecond latency from feedback to control, enabling precise management of the highly dynamic melt pool and keyhole behaviors in both laser welding and additive manufacturing processes.
    • Superior AI computing
      With an AI computing capacity of 825 TOPS, the AI-powered welding control system is built to handle massive datasets, allowing for rapid and sophisticated model inference.
    • Integrated data fusion
      By acquiring multi-modal data via high-speed image and spectral capture cards, the system leverages AI algorithms to perform real-time quality assessments and dynamically adjust laser parameters for precise process control.
    • Unmatched bandwidth
      Featuring CXP12 and PCIe 4.0 interfaces, the laser welding control system achieves an impressive 178 Gbps transmission bandwidth, guaranteeing both efficient data transfer and real-time responsiveness.
    Applications
    • Laser welding
      Quality monitoring & closed-loop control.
    • Laser cutting
      Quality monitoring & closed-loop control.
    • Additive manufacturing
      Quality monitoring & closed-loop control.
    We invite you to send us your requests

    Our engineers are always here for you.

    Get in Touch
    Related Components for Smart Laser Welding System
    Discover All
    Other Components & Modules for Laser System

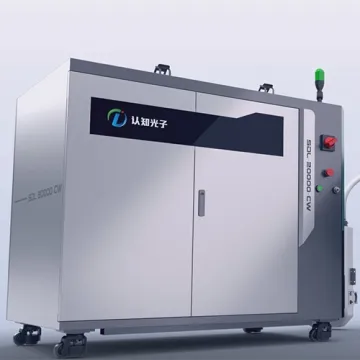

    Our software-defined fiber laser is based on phased-array technology, enabling a user-definable, sortable, and switchable laser spot shape with a scannable focal point. Its high power, high beam quality, and high dynamic beam shaping frequency, combined with a real-time focus correction feature, allow a single-mode laser to achieve twice the depth of focus.

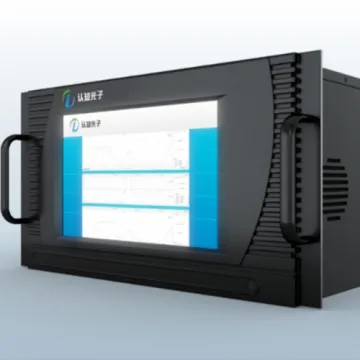

    Our 5-in-1 laser welding process monitoring sensor provides real-time spatter identification. Using a high 100MHz sampling frequency, it captures sudden changes in light intensity caused by spatter. A machine learning algorithm then differentiates between normal and abnormal spatter, linking to the laser to reduce power and prevent incomplete fusion.
