    LPM-1064-C5 Fiber Laser Beamsplitter Module

    Beam splitting for the analysis and comparison of fiber laser optical parameters

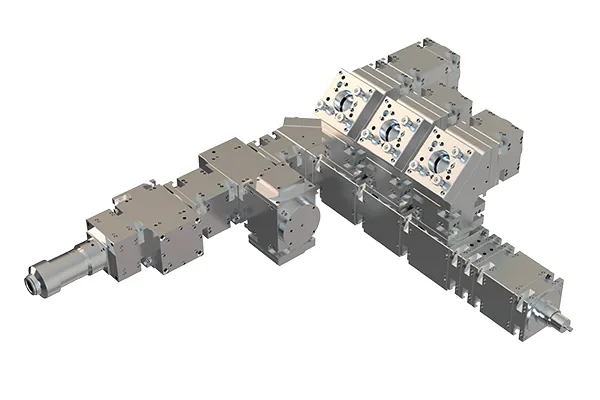

    LPM-1064-C5 fiber laser beamsplitter module is designed for the precise measurement of key fiber laser parameters, including beam quality, polarization state, spectrum, power, and power stability. It is suitable for testing the optical parameters of fiber lasers ranging from milliwatt to ten-kilowatt power levels.

    Request a Quote
    Parameters
    Input Laser Requirements
    Laser wavelength (nm) 1064 (other wavelengths customizable)
    Input laser polarization state Arbitrary
    Test laser power High power: 1kW to 10kW
    Low power: 10mW to 100mW
    Beam quality range (M²) 1-20
    Test Output Ports
    Polarization test port FC/APC fiber coupled output
    Power stability Focused output to photodetector
    Spectrum test port Focused output to compatible fiber
    Power test port Collimated output to power meter
    Beam quality test port Collimated light output
    Input Optical Interfaces
    High-power test port QBH interface or collimated input
    Low-power test port M11×0.5 fiber collimator interface
    Advantages
    • Wide measurement range
      Supports optical parameter measurement for both high-power (1kW to 10kW) and low-power (10mW to 100mW) fiber lasers.
    • Precise beam splitting technology
      Integrates a high-power beamsplitter, attenuator, beam-reducing lens group, and fiber coupler to precisely split the output beam from the fiber laser.
    • Multi-functional compatibility
      By directing the split beams to a beam quality analyzer, polarization state tester, spectrometer, power meter, and high-speed photodetector, the module enables a full suite of optical parameters to be acquired in a single test.
    • Extended functionality
      Equipped with an M11×0.5 fiber collimator interface, it supports the connection of a fiber collimator to meet the measurement needs of milliwatt-level low-power fiber lasers.
    Basic Composition

    The fiber laser beamsplitter module integrates optical modules such as a high-power beamsplitter, attenuator, beam-reducing lens group, and fiber coupler. These modules work together to precisely split the fiber laser's output beam to various measurement instruments, allowing for a complete record of optical parameters from a single test.

    Customization

    This fiber laser beamsplitter module primarily serves the beam splitting function; users can configure other measurement equipment, such as beam quality analyzers and polarization state testers, as needed.
