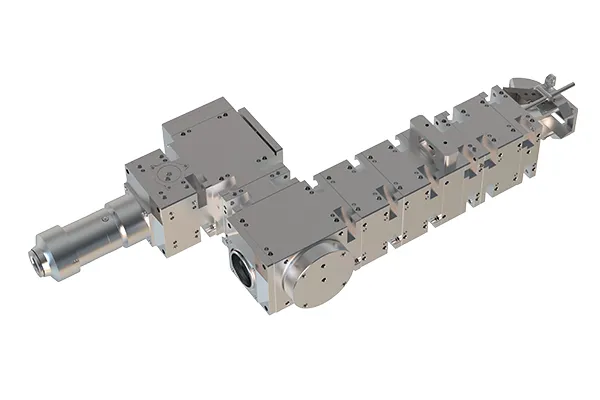

    LWH-10000-F0.5/F1.0/F1.2 Modular Laser Welding Head

    Laser processing head with a power up to 15kW for welding tasks requiring long focal length and short working distance

    The modular laser welding head is designed for welding operations in confined spaces, such as oil pipelines, as well as for welding thick metal materials. The laser welding head is composed of a collimation module, a focusing module, and a shielding gas module to accommodate various high-efficiency welding needs. The product can be equipped with optional beamsplitter and reflection modules to support weld seam monitoring, spot profile analysis, and power measurement, thereby comprehensively enhancing the precision and controllability of the welding process. The collimating and focusing lens groups are customizable to meet specific weld width and back-working-distance requirements.

    Request a Quote
    Parameters
    Product Model LWH-10000-F0.5 LWH-10000-F1.0 LWH-10000-F1.2
    Input Laser Requirements
    Applicable power (kW) 3-15
    Operating wavelength (nm) 1064
    Input laser interface QBH
    Welding Head Optical Parameters
    Collimation focal length (mm) 100, 150 (two options)
    Focusing focal length (mm) 500 1000 1200
    Back working distance (mm) 500
    Applications
    • High-beam-quality laser remote welding.
    • On-site welding of oil pipelines.
    • Welding of thick metal materials.
    Features
    • Long focal length & short working distance design
      Ideal for precision welding and operations in confined spaces.
    • High-power welding
      Suitable for laser welding systems with power ranging from 3kW to 15kW.
    • Customization services
      Provides customized collimating and focusing lens groups according to user requirements.
    • Comprehensive monitoring
      Supports weld seam monitoring as well as spot profile and power measurement functions to ensure welding quality.

    This laser welding head is widely used in industries requiring high-precision and high-power laser welding, particularly for thick metal welding in oil pipelines, shipbuilding, and automotive manufacturing.
