    PLM-24-LOCSET 24-Channel Laser Multi-Jitter Control Unit

    Reducing or suppressing the jitter in laser beams by minimizing the effects of mechanical vibrations and thermal noise

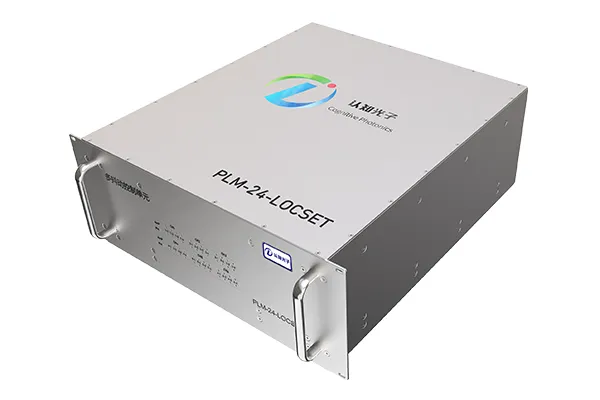

    PLM-24-LOCSET 24-channel laser multi-jitter control unit is a laser array parameter controller based on a signal integral optimization iterative algorithm. It is widely used in fields such as laser coherent beam combining, power combining, and industrial optimization control, effectively mitigating the effects of mechanical vibrations and thermal noise on laser beams. The laser multi-jitter controller can achieve delay and phase synchronization for 24 lasers in a few microseconds, with a convergence speed that is two orders of magnitude higher than SPGD controllers.

    Request a Quote
    Parameters
    Input Parameters
    Analog input (V) 0 to +3.3 (50Ω load)
    Bit width (bit) 14
    Sampling frequency (MHz) 65
    Number of channels 2 (including 1 synchronous signal)
    Output Parameters
    Voltage range (V) -10 to +10 (50Ω load)
    Bit width (bit) 14
    Modulation frequency (MHz) 100-150
    Number of channels 24 (customizable)
    Power Requirements
    Supply voltage AC220V
    Power consumption 0.5A @ AC220V
    Dimensions & Weight
    Dimensions (L×W×H) (mm) 598 x 430 x 182
    Weight (kg) 10
    Environmental Adaptability
    Operating conditions -5 to +45°C,< 90%RH, can be reinforced for special environments
    Storage conditions -20 to +45°C,< 90%RH, can be reinforced for special environments
    Applications
    • High-energy laser array incoherent (ICBC)/coherent (CBC)/spectral beam combining (SBC).
    • Non-coherent/coherent/spectral synthesis of high-energy laser arrays on a target.
    • Laser material processing.
    • Multi-input multi-output (MIMO) lidar/laser communication.
    • Optical system parameter stabilization.
    Composition & Principle

    PLM-24-LOCSET laser multi-jitter controller consists of an AC220V/DC24V power supply circuit, an LOCSET control circuit, a frequency synthesis circuit, and SMA input/output interfaces. It receives a demodulated analog input signal, which is used as the objective function for the control algorithm. The algorithm runs simultaneously on the computing unit for each individual channel. Based on the current input value, the algorithm calculates a digital output value and converts it into a single-channel output signal, achieving fast phase locking and beam combining for multiple lasers with a convergence speed of up to 3μs.

    Customization

    A single PLM-24-LOCSET laser multi-jitter control unit can simultaneously output 24 control parameters. The laser control system is scalable via clock synchronization to manage additional modules, and the number of channels can be customized to meet user-specific requirements.
    We invite you to send us your requests

    Our engineers are always here for you.

    Get in Touch
    Related Digital Laser Components
    Discover All
    Other Components & Modules for Laser System

    Our tunable narrow linewidth laser seed source integrates a single-frequency PM fiber laser, a wide-bandwidth electro-optic phase modulator, and a driver circuit. By applying a specific RF signal to the single-frequency seed light via the modulator, the spectral width is successfully expanded from kHz to the 100GHz range, effectively suppressing the SBS effect that can occur during high-power amplification and thereby increasing the output power.

    Our 4-channel narrow linewidth low-noise pm fiber amplifier array is a core component of our next-generation low-noise fiber amplifier systems. It features an integrated opto-electro-mechanical design with four independent high-performance PM fiber amplifier channels. This module offers exceptional amplification with a total power of 80W. The standard version operates stably across a wide temperature range of -5°C to +45°C, and a military-grade reinforced design is available for extreme environments.

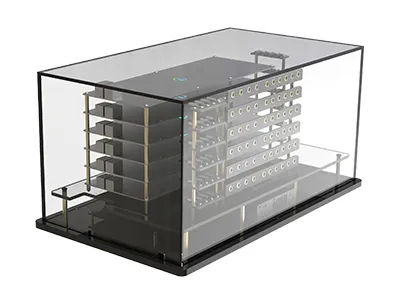

    CP Laser's multi-node data acquisition and interlock protection system is specifically designed to meet the complex challenges of data acquisition and safety interlocks in industrial environments. It supports up to 100 nodes, meeting the needs of large-scale industrial sites. When sensor data exceeds a preset threshold, the system automatically triggers an alarm signal, ensuring equipment and production safety.
