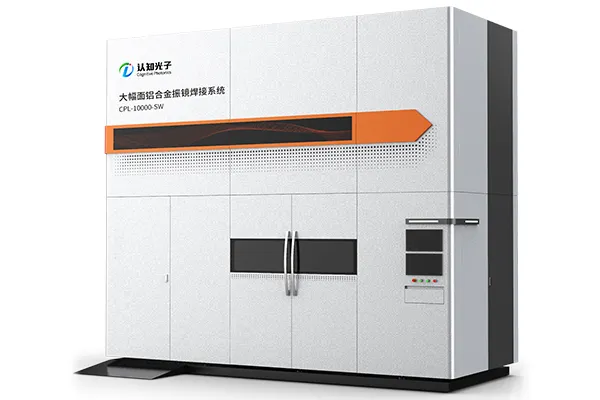

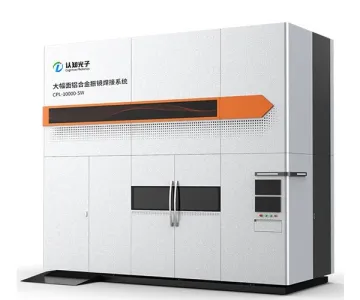

    CPL-10000-SW Large Format Galvo Laser Welding System

    Laser welding workstation with galvanometer for a large working area of up to 1200×1200mm

    CPL-10000-SW large format galvo laser welding system is an intelligent laser welding solution specifically designed to address the challenges of low efficiency, poor control, and high costs in ultra-large-format planar welding. The system supports a maximum processing area of 1.2m × 1.2m and is suitable for the precision welding of various materials, including aluminum alloys, die-cast aluminum, stainless steel, and copper alloys.

    The CPL-10000-SW integrates several advanced technologies, such as spot-following coaxial gas shielding and fume extraction, automatic weld seam generation, and post-weld surface defect detection. It provides full closed-loop control over welding quality. The system uses a proprietary closed-loop welding quality controller combined with an AI large-model to achieve real-time quality control during the welding process, ensuring high precision and stability in the final weld.

    Request a Quote
    Parameters
    Application Objects
    Materials Aluminum alloy, die-cast aluminum, stainless steel, copper alloy
    Thickness (mm) < 5
    Scale (m) 1.2×1.2
    Speed (m/min) < 30
    Methods Single-layer, single-pass laser deep-melt welding, laser spot welding/continuous welding, no wire solder required
    Features Welding without gas pores, cracks, high-speed welding without hump or undercutting.
    System Components
    Laser SDL-10000-CW
    Monitoring sensor WMS-100-FIO
    Laser active illumination, high speed coaxial vision camera
    Laser profiler
    Closed-loop controller LWR-1000-J
    Welding head 2m long-focus field lens
    Vision module Active illumination, imaging frame rate 1kHz, single frame 1280x384 pixels, 12-bit
    Motion actuators 2D CNC 2D laser galvanometer scanner
    Highlight Functions
    Pre-welding Automatic weld seam positioning, tolerance adaptive alignment
    In-welding Adaptive beam profile modulation, high-speed imaging, 5-channel synchronous signal monitoring and closed-loop quality assurance.
    Post-welding Welding quality classification and regression
    Full stroke Real-time beam tracking, coaxial gas shielding, fume extraction, multi-modal real-time monitoring and AI-powered closed-loop control.
    Components

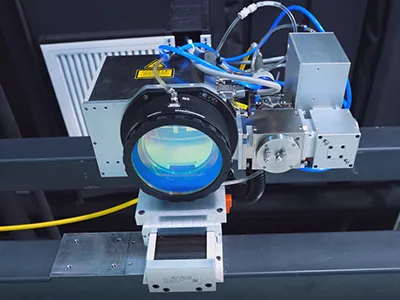

    High-power galvanometer system

    High-power galvanometer system
    A galvo system with a welding power of 12kW, a welding focal length of 2000mm, a scanning area of 1200mm × 1200mm, and a maximum welding speed of 500mm/s.

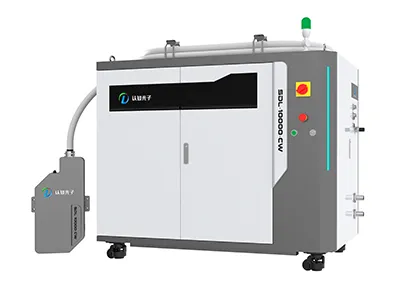

    Full-vector optical field-controlled laser

    Full-vector optical field-controlled laser
    Offers multiple advantages, including high power, high beam quality, and high-dynamic beam shaping frequency. Its single-fiber laser output power reaches 10kW, with a beam quality of 1.2 times the diffraction limit and a beam shaping frequency of up to 10MHz.

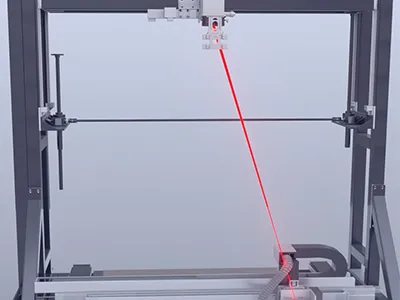

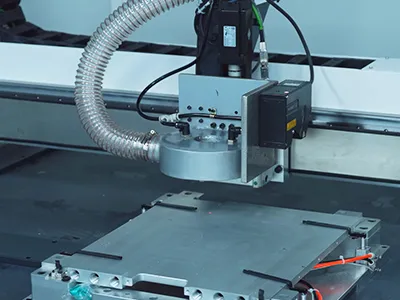

    Coaxial spot-following system

    Coaxial spot-following system
    Features a maximum motion area of 1500mm × 1500mm, a maximum motion speed of 500m/s, a repeatability of 0.015mm, and a spot-following error of 0.1mm.

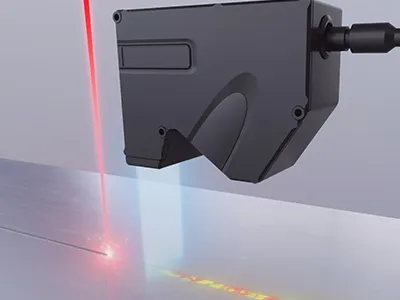

    3D profile scanning camera

    3D profile scanning camera
    Enables automatic weld seam generation and post-weld surface measurement, achieving fully automated welding and surface evaluation.

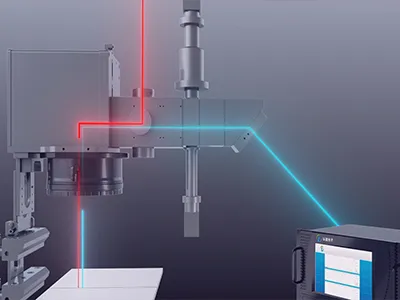

    In-weld detection system

    In-weld detection system
    Can identify various welding defects in real time, such as focus drift, optical thermal distortion, welding offset, virtual welding, lack of fusion, and burn-through.

    High-precision processing platform

    High-precision processing platform

    Technical Advantages
    • Industry-leading processing range
      Go beyond industry standards with a processing area that is 2.4 times larger than the current maximum for other galvo systems.
    • Simplified operations and reduced cost
      The galvo laser welding system eliminates the need for complex and expensive control methods like flying or splicing welds.
    • Integrated fume and weld protection
      Our proprietary four-axis linkage spot synchronization technology effectively solves traditional galvo welding issues related to weld protection and fume extraction.
    • Total quality assurance
      With integrated sensors for pre-weld, in-weld, and post-weld processes, the laser welding system enables automated weld positioning, real-time quality monitoring, and automated post-weld evaluation for complete quality assurance.
    • AI-powered closed-loop control
      By integrating large AI models with dynamic spot modulation technology, the steel welding system provides online, closed-loop quality control throughout the entire welding process.

    The CPL-10000-SW large format galvo laser welding system elevates welding technology to a new level. It delivers a highly efficient, precise, and intelligent solution that is widely applicable across major industries, helping to drive technological innovation and production efficiency.

    Applications

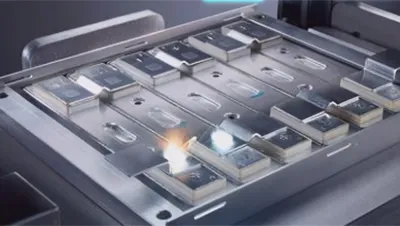

    • Large Format Galvo Laser Welding SystemFull range of aluminum alloy and die-cast aluminum welding, such as for new energy vehicle and energy storage water-cooled plates.

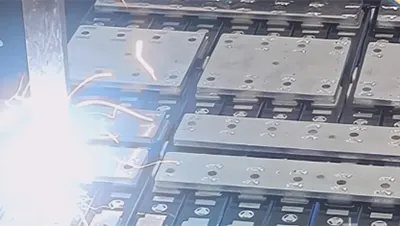

    • Large Format Galvo Laser Welding SystemCopper alloy welding, such as for busbars

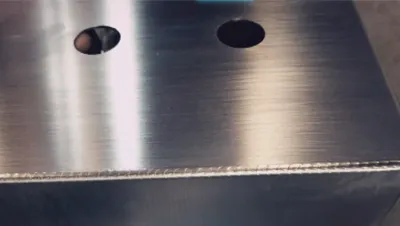

    • Large Format Galvo Laser Welding SystemStainless steel welding, such as for hardware kitchen appliances
    We invite you to send us your requests

    Our engineers are always here for you.

    Get in Touch
    Laser Welding System
    Other Components & Modules for Laser System

    It is primarily used for welding thin plates of aluminum alloys, die-cast aluminum, and copper alloys. Common applications include ultra-large-format, high-speed welding of electric vehicle water-cooling plates and battery busbars.

    The system is configured with a coaxial spot-following motion system. A protective gas nozzle is carried by this system to synchronously follow the laser spot, ensuring the melt pool is continuously covered by protective gas and preventing oxidation.

    The large-format system, in conjunction with a dynamic spot laser, uses vector spot-editing technology to correct for optical deformation. This optimizes the deformed spot back to a normal shape, enabling the galvanometer to operate at its maximum capacity.

    By leveraging its long focal length and high energy density, the large-format system eliminates the need for complex robotics, flying-seam welding, or multi-head splicing technologies. This results in higher technical maturity, lower cost, higher reliability, and greater integration capability.
