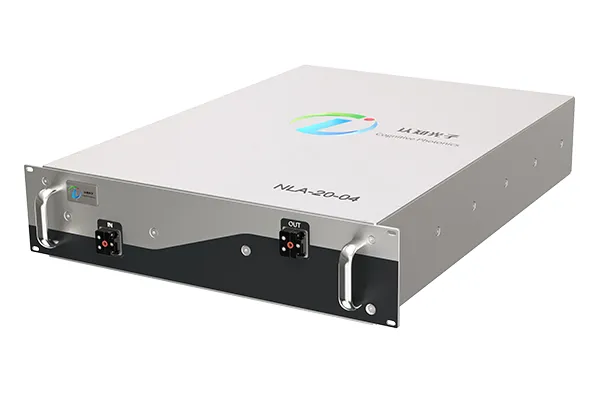

    NLA-20-04 4-Channel Narrow Linewidth Low-Noise PM Fiber Amplifier

    Synchronously amplifying single-frequency narrow-linewidth laser, delivering 20W output power per channel (80W in total)

    The NLA-20-04 4-channel narrow linewidth PM fiber amplifier array is a core component for a new generation of low-noise fiber amplification systems. It features an integrated opto-electro-mechanical design with four independent, high-performance PM fiber amplifier channels. This PM fiber amplifier array module achieves a single-channel output power of 20W while maintaining a high beam quality of M²<1.1 and a polarization extinction ratio of >20dB. It also ensures extremely low phase noise and spectral broadening, providing a high-quality input for subsequent laser power amplification.

    Request a Quote
    Parameters
    Optical Characteristics
    Input laser power (mW) >5
    Max. output power (W) 20 (single channel)
    Power tunability (%) 10-100
    Polarization extinction ratio (dB) >20 (fast axis cut-off)
    Laser wavelength (nm) 1064±2
    Beam quality (M²) < 1.1
    Laser linewidth (GHz) 10-100 (adjustable)
    Optical Output
    Input fiber interface FC/APC
    Input fiber type PM980
    Output fiber type PLMA-GDF-10/125-M
    Output fiber interface Bare fiber
    Pigtail length (m) 1
    Electrical Characteristics
    Input voltage (V) AC220 or DC24
    Communication method RS485
    Environmental Adaptability
    Operating conditions -5 to +45°C, < 90%RH, can be reinforced for special environments
    Storage conditions -20 to +45°C, < 90%RH, can be reinforced for special environments
    Advantages
    • Powerful amplification
      Supports the simultaneous amplification of four milliwatt-level (>5mW) single-frequency/narrow linewidth lasers, with an output power of up to 20W per channel and a total power of 80W.
    • Ultra-low phase noise
      Utilizes phase noise suppression technology to ensure spectral broadening of less than 0.5% during amplification.
    • Exceptional environmental adaptability
      The standard version operates stably across a wide temperature range of -5°C to +45°C, with an optional military-grade reinforced design available for extreme environments.
    • Robust engineering design
      Compact, modular structure.
      Supports dual power supply modes (AC220V/DC24V).
      Equipped with 1-meter bend-resistant special pigtail fibers.
      Features independent channel monitoring and fault diagnosis for all channels.
    Applications
    • High-energy laser synthesis systems
      Wavefront control for phased array lidar.
      Pre-amplification stage for spectral/coherent synthesis systems.
      Multi-channel beam synthesis routing networks.
    • Smart sensing
      Light sources for multi-line lidar in autonomous driving.
      Power enhancement for laser communication MIMO systems.
    • Specialized industrial applications
      Power distribution systems for high-precision laser processing.
      Nodes in distributed fiber sensing networks.
      Ground station relays for space optical communication.
    Customization

    This low-noise PM fiber amplifier offers in-depth customization options:

    • Integration of wavelength division multiplexing (WDM) devices at input/output ends.
    • Support for a cascaded amplification architecture design.
    • Optional air/water cooling systems for continuous power mode.
    • Specialized wavelength customization (covering the 1000-1100nm band).
    • Military-standard reinforced packaging (IP68 protection rating).
