    OMM-10000-1064 PP Real-time Laser Process Monitoring Module

    Online process monitoring of laser power and spot profile in laser welding, cutting and marking operations

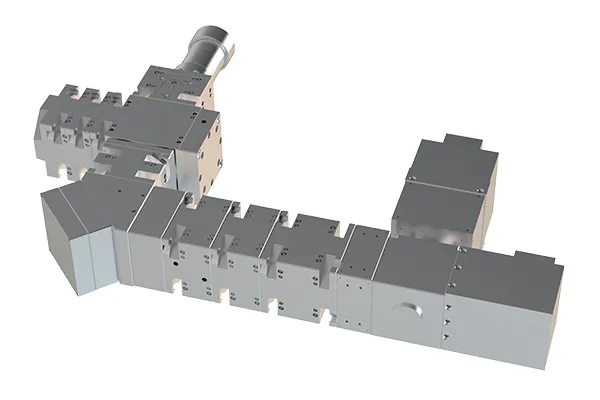

    OMM-10000-1064 PP real-time laser process monitoring module is a high-precision monitoring module designed for laser processing equipment. It enables real-time monitoring of the spot profile and power of the laser source from the processing head, ensuring the quality and stability of the laser welding process. This module precisely measures laser power and spot distribution, making it a key component for optimizing laser processing quality and enhancing production efficiency.

    Request a Quote
    Parameters
    Input Laser Requirements
    Incident beam divergence angle (mrad) < 0.5
    Incident beam diameter (mm) < 25
    Laser wavelength (nm) 1064
    Incident laser power (kW) 1-10
    Test Accuracy
    Laser power monitoring accuracy (%) < 0.3
    Spot profile monitoring accuracy (%) < 1
    Dimensions & Weight
    Dimensions (W x D x H) mm 440×165×190
    Weight (kg) 4
    Features
    • Accurate monitoring
      Precisely monitors laser spot profile and power through a high-power beamsplitter, attenuator group, and 32x magnifying lens group.
    • High stability
      Real-time detection of laser power fluctuations ensures the stability of the laser output, adapting to the demands of high-power laser processing.
    • Flexible customization
      Supports customizable interfaces to suit different equipment and application scenarios.
    • Broad applications
      Suitable for a variety of laser processing equipment, including welding, cutting, and marking, with wide applications in industrial manufacturing, automotive, and aerospace.

    By continuously monitoring laser power and spot profile, this module effectively improves processing accuracy and production efficiency, making it an indispensable core component of modern laser processing equipment.

    Functions & Principle

    This monitoring module integrates optical components such as a high-power beamsplitter, attenuator group, 32x magnifying lens group, and prism. Through beamsplitting technology, the laser beam from the processing head's source is guided to both a spot profiler and a photodetector. The 32x magnifying lens group allows for precise monitoring of the laser spot distribution, while the photodetector provides real-time monitoring of laser power and stability, detecting whether the laser output is in its optimal operating state.

    Applications
    • Laser welding, cutting, and marking.
    • Laser process monitoring.
    We invite you to send us your requests

    Our engineers are always here for you.

    Get in Touch
    Related Laser System Modules & Measurement Instruments
    Discover All
    Other Components & Modules for Laser System

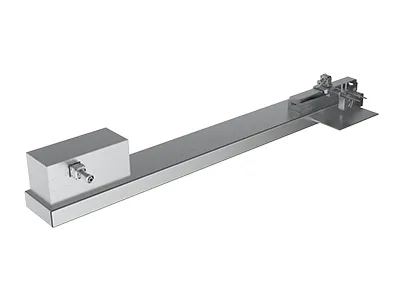

    We recommend our laser welding head beam quality analyzer, specifically designed to evaluate the quality of high-energy focused laser beams. It can measure the static and dynamic beam quality from the laser processing head in real time, accurately assessing metrics such as intensity profile, beam width, shape, and focal position. It supports laser powers of up to 20kW, meeting the demands of high-power applications.

    Our ten-kilowatt long-focal-length short-working-distance laser welding head is an excellent choice. This welding head, composed of a collimation module, a focusing module, and a shielding gas module, supports weld seam monitoring, spot morphology analysis, and power measurement. It comprehensively enhances the precision and controllability of the welding process. Both the collimating and focusing lens groups are customizable to meet specific weld seam width and back-working-distance requirements.

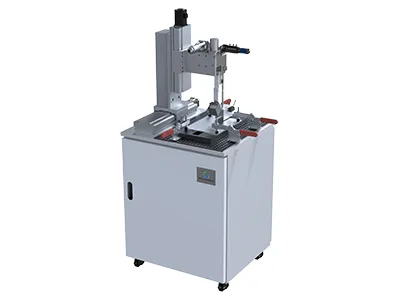

    Our position compensation laser welding system is an intelligent welding solution that solves this issue by combining a real-time weld seam position sensor with a high-speed galvanometer. The system quickly compensates for positional deviations, ensuring the laser beam is always aligned with the center of the weld seam and preventing welding defects caused by positional inaccuracies.
