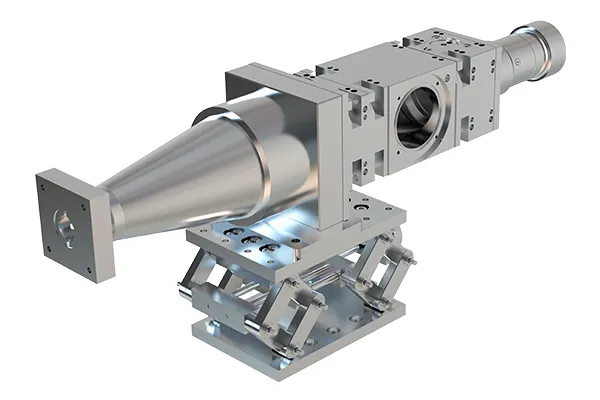

    LCC-1064-D80 Laser Collimation Module Calibrator

    Collimation testing and calibration of laser beams through CMOS spot profile analysis

    LCC-1064-D80 laser collimation module calibrator uses CMOS spot profile analysis technology to precisely measure the focused spot diameter of the output beam from a laser welding head's collimation module in real time. This ensures the accurate adjustment of the welding head's collimation lens position. The laser collimation module calibrator can be used for the factory calibration of collimation modules for laser welding heads and for testing the thermal lensing effect of high-power lasers, providing reliable calibration accuracy and testing performance.

    Request a Quote
    Parameters
    Input Laser Requirements
    Welding head input power (W) 100-10,000
    Operating wavelength (nm) 1064
    Collimation module interface Customizable
    Incident beam diameter (mm) < 50
    Beam quality range (M²) 1-20
    Calibration Parameters
    Relative position of collimation lens and QBH Position when output spot is at minimum
    Output laser optical axis stability Records spatiotemporal characteristics of the focused spot
    Thermal lensing effect of collimation lens Spot drift over time at high power
    Test Output Port
    Spot profile distribution pixels 1280×1024
    Spot profile output frame rate (Hz) 60
    Applications
    • Factory calibration of collimation modules for high-energy laser processing heads.
    • Thermal lensing effect testing of high-power laser collimators.

    LCC-1064-D80 laser collimation module calibrator is an ideal choice for the calibration and performance verification of laser welding equipment. Accurate, efficient, and flexible, it is a key tool for ensuring weld quality.

    Composition & Principle

    Based on the calibration principle of a laser autocollimator, the calibrator integrates a high-power beamsplitter module, a high-speed CMOS spot analyzer, and other core optical components. It can measure the focused spot diameter in real time and quantitatively. During the calibration process, the optimal position of the collimation module and laser output head is determined when the spot diameter reaches its minimum value.

    Customization

    To meet diverse user requirements, the LCC-1064-D80 laser collimation module calibrator offers customizable interfaces, ensuring the device's compatibility and flexibility.
    We invite you to send us your requests

    Our engineers are always here for you.
